PROFESSIONAL DTF PRINTHEAD

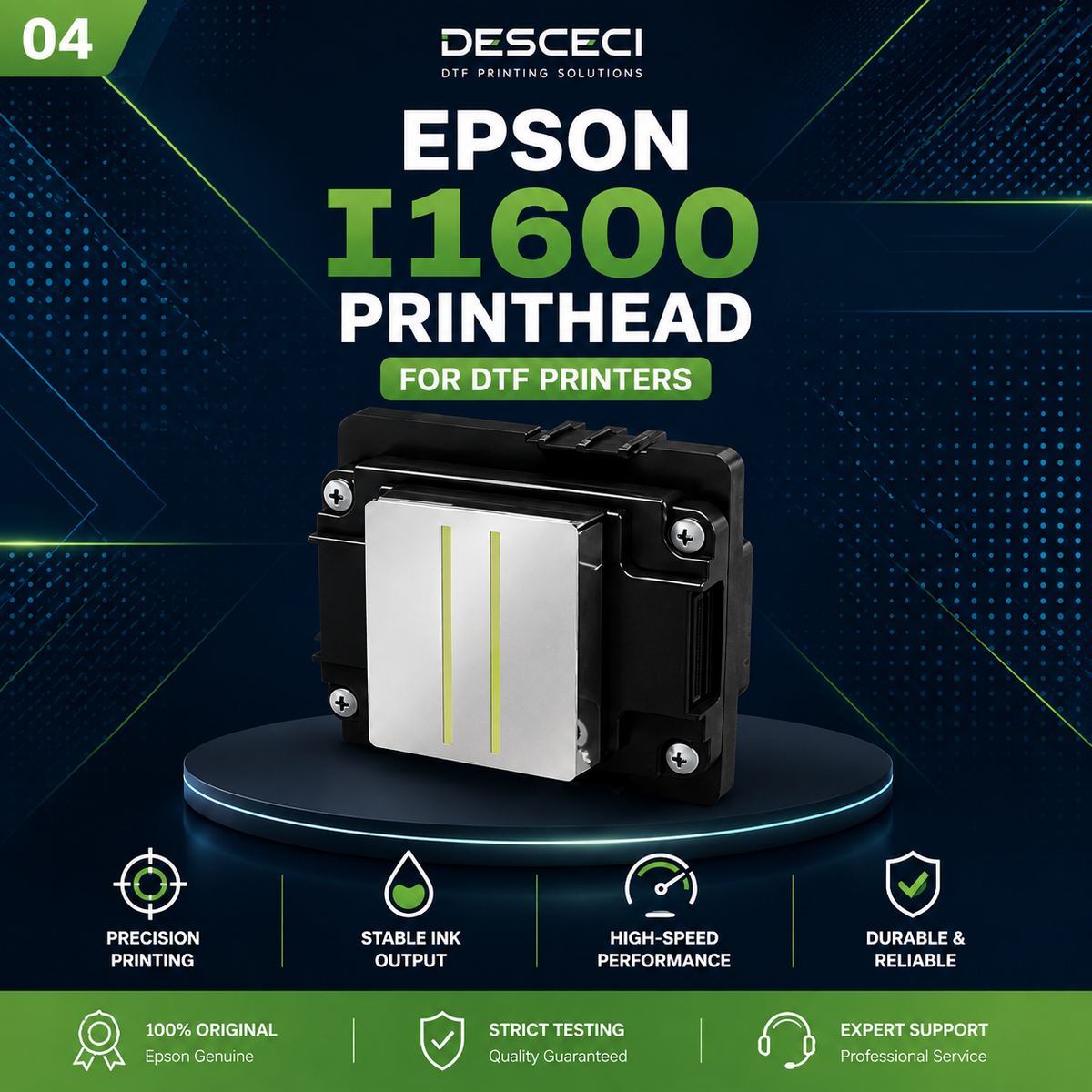

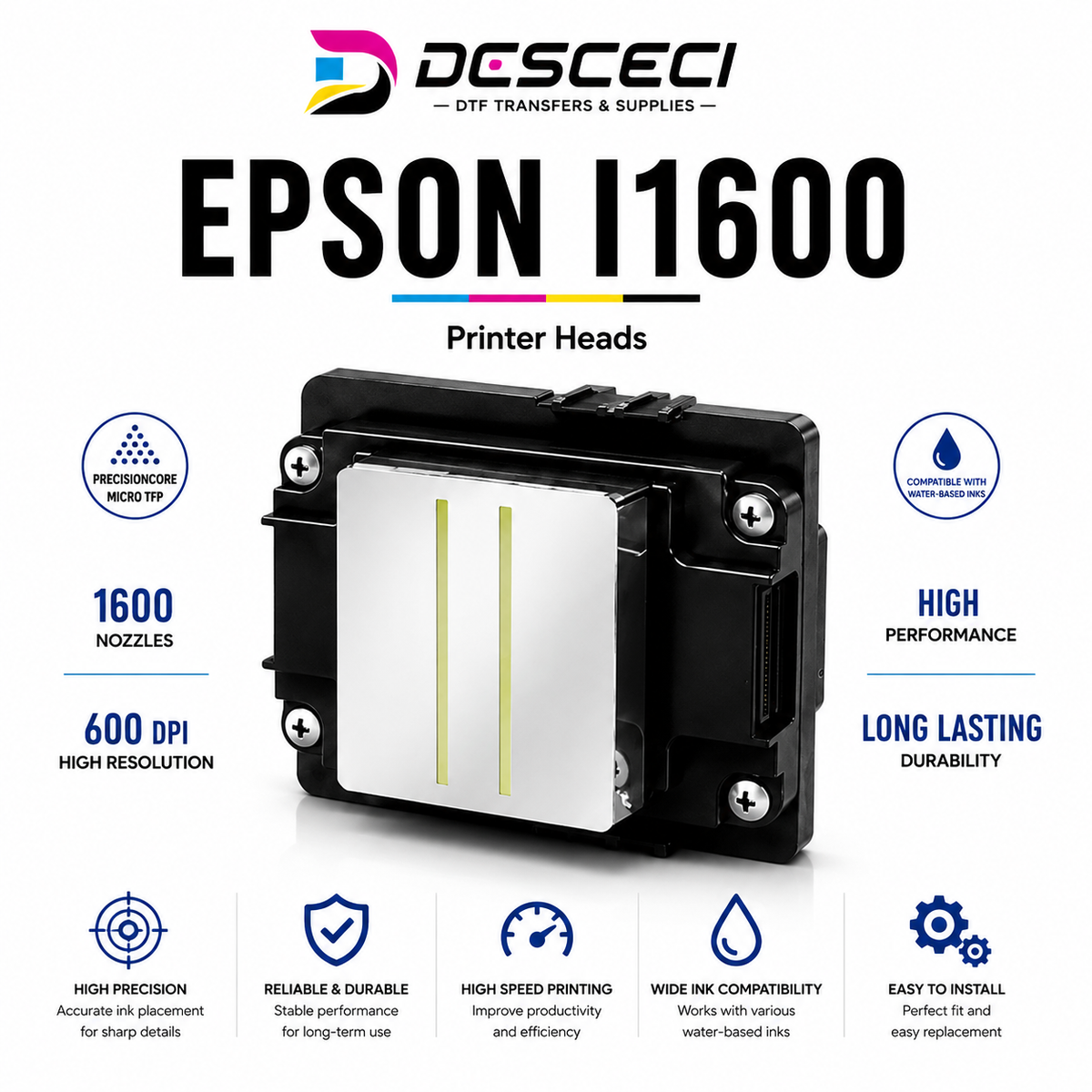

Epson I1600-A1 Printhead for Precision DTF Printing
A compact PrecisionCore printhead designed for accurate ink placement, smooth image details, and reliable performance in small to medium-sized DTF printing systems.
Precision Nozzles
Four nozzle rows provide accurate ink placement for sharp details and consistent professional output.
High-Resolution Output
Supports up to 600 dpi using two rows for smoother gradients, cleaner details, and better image quality.
Compact Print Width
A 1-inch printhead architecture that fits compact printer systems while maintaining precise output.
Reliable DTF Performance
Designed for compatible four-color aqueous pigment ink systems used in professional DTF printing.
TECHNICAL DETAILS
Epson I1600-A1 Printhead Specifications
Review the key technical details before selecting the I1600-A1 for your DTF printer system.
| Printhead Model | I1600-A1 |
|---|---|
| Ink Type | AQ Ink |
| Number of Nozzles | 1,600 |
| Nozzle Rows | 4 Rows |
| Maximum Ink Colors | 4 Colors |
| Resolution | 300 dpi / 1 row; 600 dpi / 2 rows |
| Effective Print Width | 33.8 mm |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | 80 g |
| 2-Level Grayscale | 6 pl / 43.2 kHz |
| 3-Level Grayscale | 6.3, 12.3 pl / 21.6 kHz |
| 4-Level Grayscale | 3.8, 6.1, 9.4 pl / 21.6 kHz |
| Recommended Ink Viscosity | 3–4 mPa·s |
BEFORE YOU ORDER
Confirm Compatibility Before Installation
Printhead compatibility depends on your printer configuration, ink system, wiring, and installation setup.
Check Your Printer Model
Confirm that your printer is designed for an Epson I1600-A1 printhead before placing your order.
Verify Ink Compatibility
Confirm the ink formulation, delivery system, and recommended viscosity before installation.
Use Professional Installation
Proper wiring, flushing, priming, calibration, and nozzle testing are important for stable performance.
Not Sure Which Printhead You Need?
Send us your printer model and current printhead information. Our team can help confirm compatibility before ordering.
CHOOSE THE RIGHT MODEL
I3200 vs I1600 vs XP600 Printheads
Compare the three common printhead options based on production level, printer configuration, and intended use.
| Comparison | I3200-A1 High Production | I1600-A1 Balanced Choice | XP600 Entry Level |
|---|---|---|---|
| Best For | Professional and high-volume DTF production | Small to medium DTF production | Entry-level and lower-volume printing |
| Main Advantage | High production capability | Balanced quality, size, and cost | Compact setup and lower entry cost |
| Recommended User | Print shops and growing apparel businesses | Small businesses and regular DTF users | Beginners and occasional users |
| Important Reminder | Requires a compatible I3200 printer system | Requires a compatible I1600 printer system | Requires a compatible XP600 printer system |
INSTALLATION & CARE
Protect Your Printhead Performance
Proper preparation and regular maintenance help support stable ink flow, reliable printing, and longer printhead service life.
Flush the Ink System
Flush incompatible or dried ink from the ink path before installing the new printhead.
Check Wiring Carefully
Confirm connector direction and wiring configuration before powering on the printer.
Prime and Calibrate
Complete priming, nozzle checks, alignment, and calibration before starting production printing.
Keep the Nozzle Surface Clean
Follow the printer manufacturer’s cleaning procedure and prevent ink from drying on the nozzle surface.
I1600-A1 SUPPORT
Frequently Asked Questions
Answers to common questions about the I1600-A1 printhead, compatibility, installation, and maintenance.
What is the I1600-A1 printhead best used for?
The I1600-A1 is a practical choice for small to medium-sized DTF production and businesses looking for a balance between print quality, compact design, and operating cost.
How many nozzles does the I1600-A1 have?
The I1600-A1 printhead has 1,600 nozzles arranged across four nozzle rows.
Is the I1600 compatible with every DTF printer?
No. Compatibility depends on the printer model, mainboard, wiring, connector configuration, firmware, and ink delivery system.
Can I replace an I3200 with an I1600?
Not automatically. I3200 and I1600 systems may use different wiring, control systems, and printer configurations. Confirm compatibility first.
Should installation be completed by a professional?
Yes. Professional installation is recommended because incorrect wiring, flushing, priming, or calibration may damage the printhead.
What information should I send for compatibility confirmation?
Please send your printer brand and model, current printhead model, ink type, connector information, and clear photos of the printhead and wiring connection.
READY TO REPLACE YOUR PRINTHEAD?
Choose the Right I1600-A1 Printhead for Your DTF System
Not sure whether the I1600-A1 matches your printer? Send us your printer information and our team will help confirm the correct configuration before ordering.
