PROFESSIONAL HEAT TRANSFER EQUIPMENT

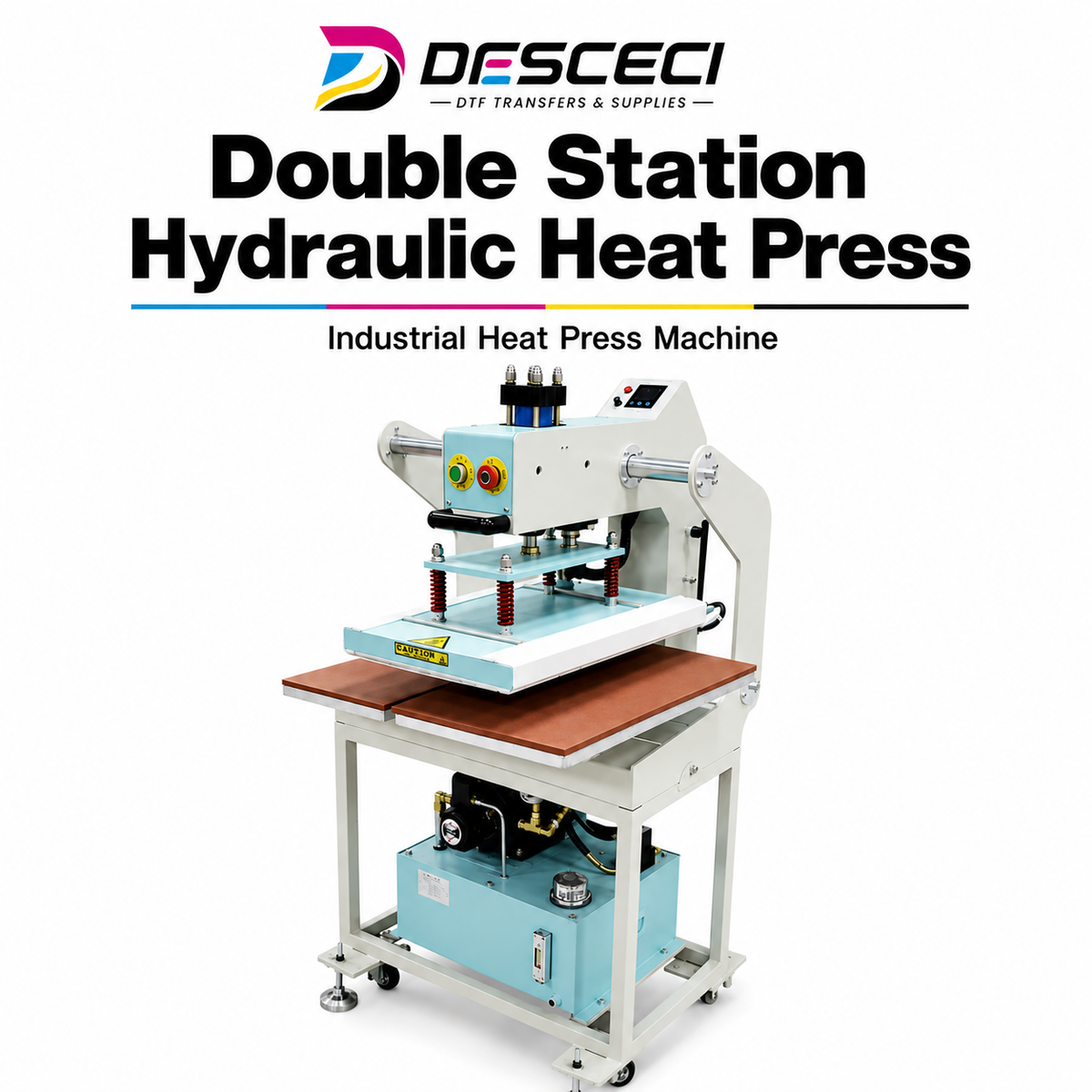

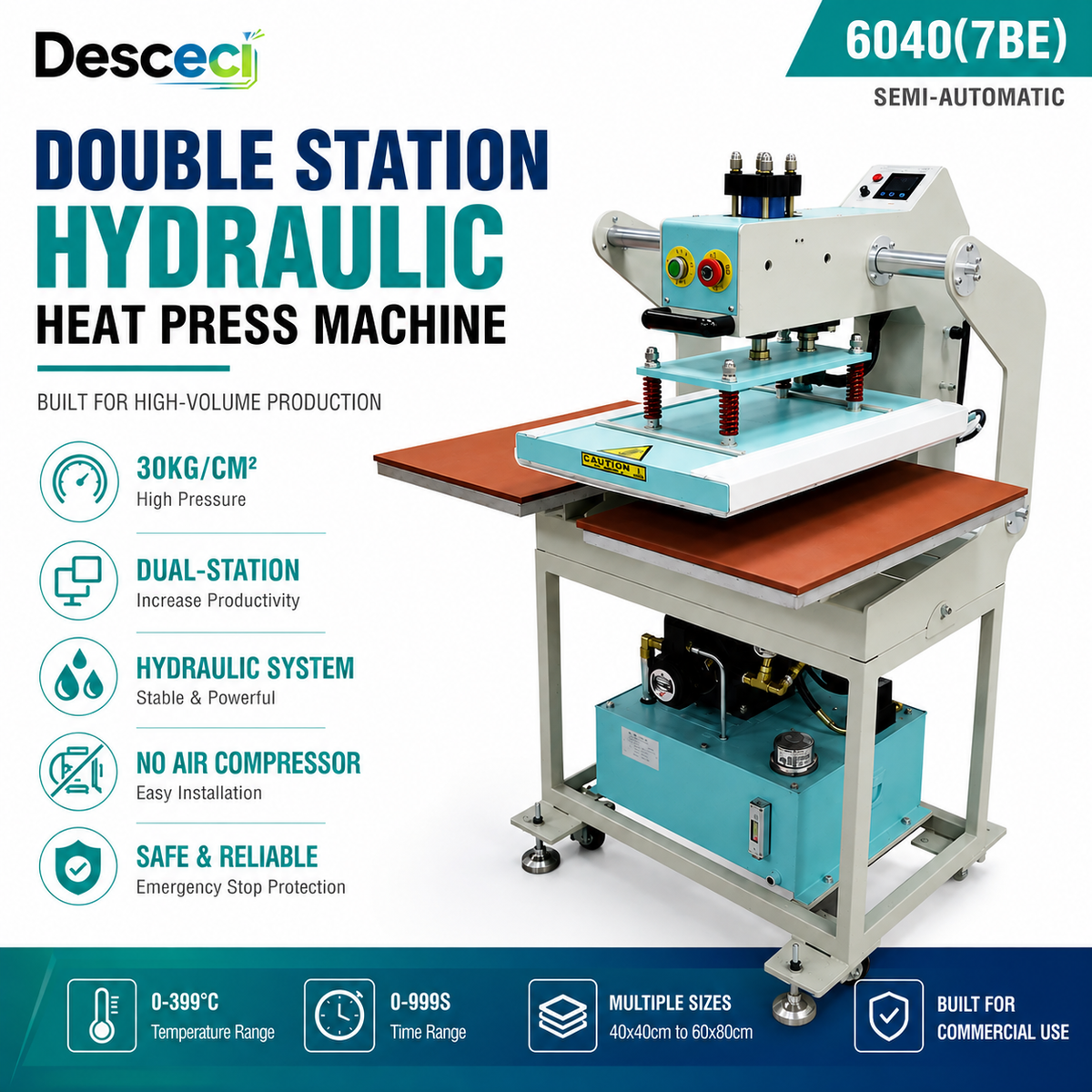

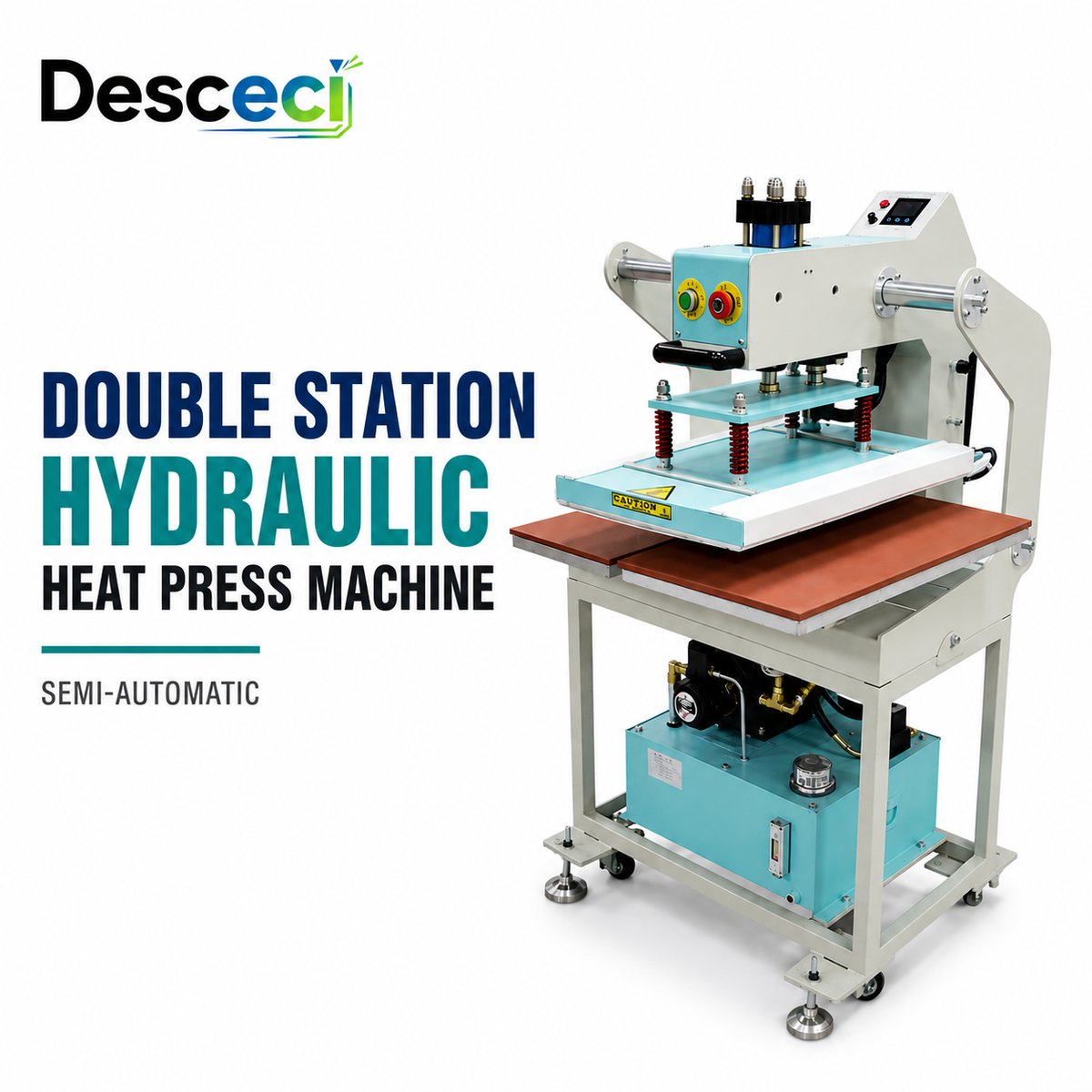

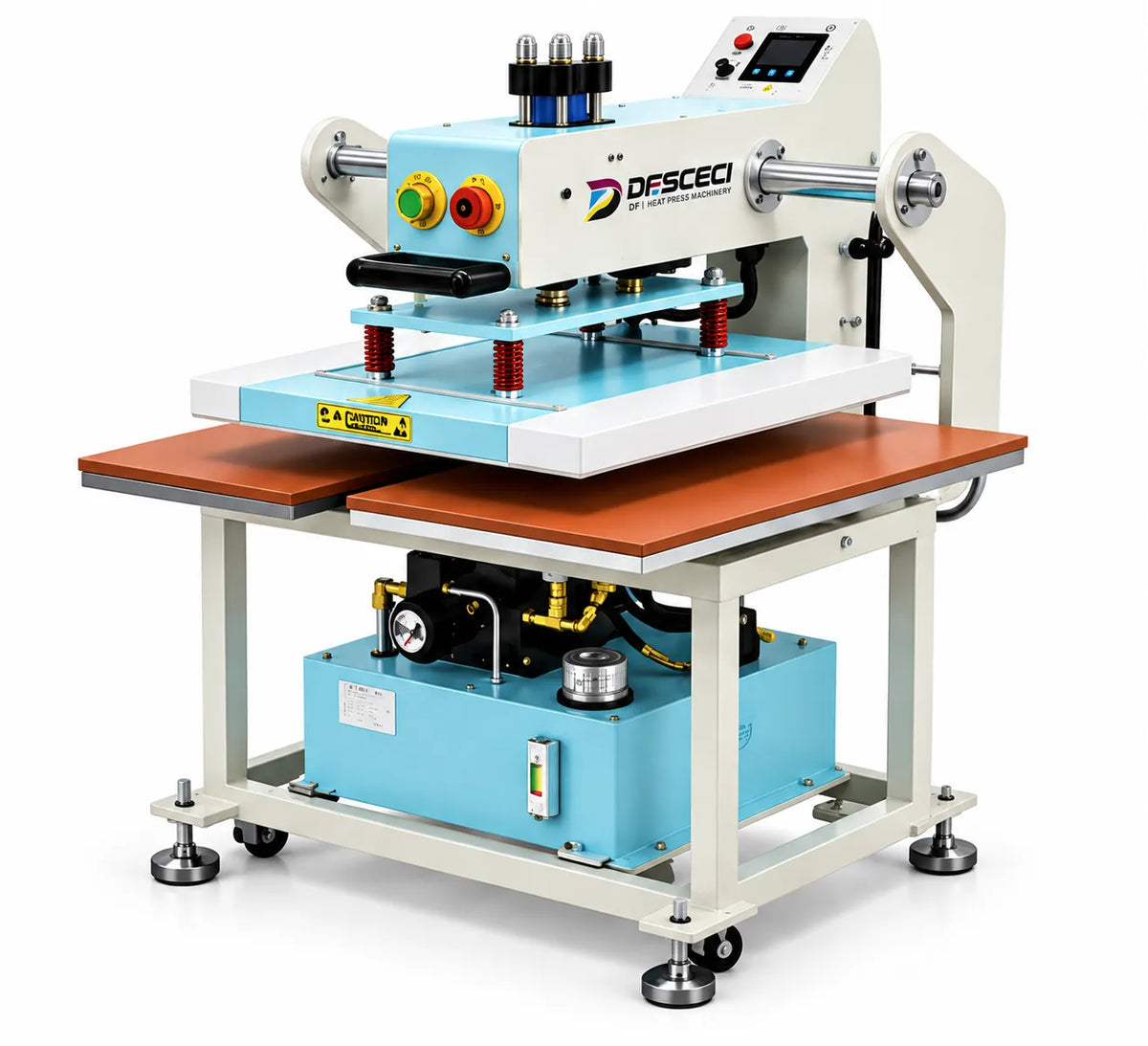

Semi-Automatic Double Station Hydraulic Heat Press Machine
The DESCECI 6040(7BE) hydraulic heat press is designed for stable, high-pressure heat transfer production with smooth operation, low working noise, and efficient double-station workflow.
High Pressing Pressure
Hydraulic pressure provides strong and consistent pressing force for reliable heat transfer results.
Dual-Station Workflow
Two working stations help improve production efficiency and reduce idle time during repeated pressing jobs.
Wide Temperature Range
Adjustable temperature control supports different heat transfer materials and production requirements.
Hydraulic Operation
No air pump is required, helping create a quieter and more comfortable working environment.
BUILT FOR EFFICIENT PRODUCTION
Designed to Keep Your Production Moving
The double-station layout and hydraulic sliding structure make daily heat transfer production more efficient and consistent.
Load the Garment
Position the garment or transfer material on the working platform before pressing.
Set the Parameters
Adjust temperature, pressing time, and pressure according to the material and transfer requirements.
Hydraulic Pressing
The heating plate moves while the bottom platform remains stable, helping prevent garment displacement.
Repeat Efficiently
Use the second station to prepare the next garment and maintain a smoother production rhythm.
TECHNICAL DETAILS
6040(7BE) Heat Press Specifications
Select the pressing platform size that best matches your production needs and available workspace.
| Specification | 40×40 cm | 40×50 cm | 40×60 cm | 50×70 cm | 60×80 cm |
|---|---|---|---|---|---|
| Model | 6040(7BE) | 6040(7BE) | 6040(7BE) | 6040(7BE) | 6040(7BE) |
| Voltage | 220V 1 Phase / 220V 3 Phase / 380V 3 Phase | ||||
| Power | 4.0 kW | 4.3 kW | 4.3 kW | 6.2 kW | 6.8 kW |
| Temperature Range | 0–399°C | ||||
| Time Range | 0–999 seconds | ||||
| Machine Weight | 120 kg | 122 kg | 124 kg | 150 kg | 180 kg |
| Packing Size | 120×78×145 cm | 125×78×145 cm | 135×78×145 cm | 150×85×160 cm | 178×102×160 cm |
ENGINEERED FOR DAILY USE
Practical Features for Professional Workflows
Every part of the machine is designed to improve stability, efficiency, and ease of operation.
Linear Bearing Sliding System
The heating plate moves smoothly while the bottom platform remains stable, helping prevent garments from shifting.
Hydraulic Pressure System
No air pump is required. The hydraulic system provides strong, stable pressure for demanding transfer applications.
Clear Parameter Control
The thermometer and parameter display screen make temperature and time settings easier to monitor.
Emergency Stop Function
The emergency stop button provides an additional safety control during machine operation.
Double Working Stations
Prepare the next item while the current pressing cycle is being completed to support a more efficient workflow.
Lower Working Noise
The machine does not require an air pump, making it suitable for working environments where noise control matters.
BEFORE INSTALLATION
Prepare Your Workspace Before Delivery
Because this is heavy industrial equipment, proper planning is important before installation and operation.
Confirm Electrical Supply
Verify whether your location supports 220V single-phase, 220V three-phase, or 380V three-phase power.
Reserve Enough Space
Allow sufficient operating and maintenance space around the machine according to the selected model size.
Use a Stable Floor
The machine weighs approximately 120–180 kg, so it should be placed on a stable, level, load-bearing floor.
Professional Setup
Electrical connection, installation, testing, and calibration should be completed by qualified personnel.
HEAT PRESS SUPPORT
Frequently Asked Questions
Helpful information before choosing and installing the 6040(7BE) hydraulic heat press machine.
What is the 6040(7BE) heat press designed for?
It is a semi-automatic double-station hydraulic heat press designed for professional heat transfer and apparel production workflows.
Does this machine require an air pump?
No. The hydraulic system provides the pressing force without requiring a separate air pump.
What is the maximum temperature?
The temperature range is 0–399°C. Actual operating temperature should be selected according to the transfer material and garment.
What pressing sizes are available?
Available pressing sizes include 40×40 cm, 40×50 cm, 40×60 cm, 50×70 cm, and 60×80 cm.
Which voltage should I choose?
The available electrical configurations are 220V single-phase, 220V three-phase, and 380V three-phase. Please confirm your local electrical supply before ordering.
Can I install the machine myself?
Professional installation is recommended because the machine is heavy industrial equipment and requires correct electrical connection, setup, and testing.
How can I confirm the correct configuration?
Send us your preferred pressing size, local voltage, phase type, and shipping location. Our team can help confirm the suitable model.
READY TO UPGRADE YOUR PRODUCTION?
Choose the Right Hydraulic Heat Press for Your Business
Tell us your preferred pressing size, voltage, phase type, and shipping location. We will help you confirm the correct 6040(7BE) configuration before ordering.
